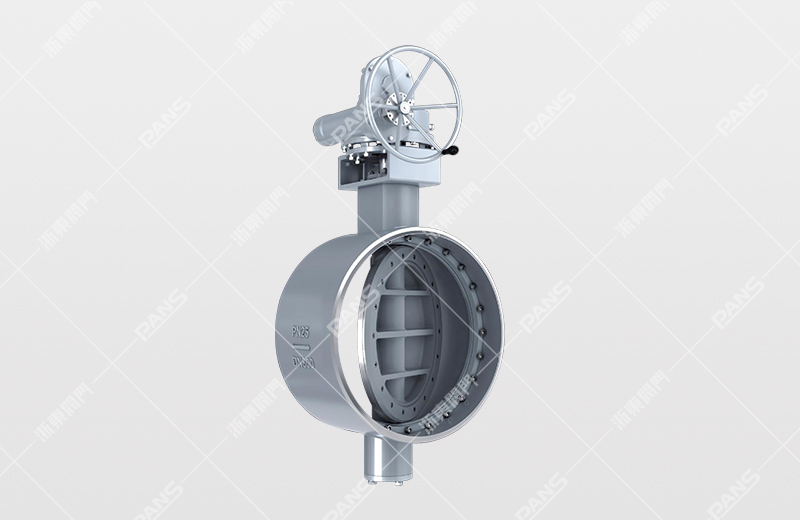

All metal bi directional pressure butterfly valve
Release time:2023-7-28


Structural features

All metal sealing pair
All-metal bidirectional pressure butterfly valve sealing pair with metal to metal hard seal, seat/seal ring made of metal materials, and do surface hardening treatment, even if the opening and closing frequently, the valve can still maintain high sealing performance, greatly improve the service life of the valve

Double seal design
Achieve bidirectional sealing, can be positive and negative bidirectional pressure, positive or reverse pressure, no internal leakage occurred, and meet the standard zero leakage requirements;

Double safety construction
In order to prevent the butterfly plate deformation, valve stem dislocation and sealing surface occlusion caused by the influence of fluid pressure and temperature, two independent thrust rings are installed on the upper and lower sides of the butterfly plate respectively, so as to ensure the normal operation of the valve under any working conditions;
In order to prevent the sudden accident caused by the damaged stem flying out caused by unknown reasons, independent stem blowout proof structures are designed at the bottom and inside of the valve.

Dead zone free design
In the design process, especially considering the application problems in the field of regulation, make full use of the sealing principle of triple eccentric butterfly valve, did the Angle design of open die area, thus put an end to the open ordinary the valve opening jump phenomenon is more common rules out the internal friction is low valve opening range caused by all kinds of unstable factors such as cannot control phenomenon, which excludes the dead zone (not take), which means that almost can start from zero opening into the regulatory regions, until 90 opening.

The seat structure
All metal alloy steel forged seat structure is used.
Its advantages are anti-erosion, wear resistance, high temperature and high pressure resistance, long service life.

Replaceable seal pair
Seal can be replaced, because the disc is independent of the sealing surface and the butterfly plate, seat and body is separate, so the disc sealing surface and the valve seat can change at the same time when the butterfly plate sealing surface or damage to the seat, just change the butterfly plate seal face and seat can, greatly reduces the maintenance cost, reduce the maintenance time and maintenance intensity with difficulty


Executive Standards

Design and manufacturing: JB/T8527, GB/T1224, API609, ASME B16.34, etc
Connection flange: GB/T91113.1~9113.4, ASME B16.5, ASME B16.74 and other standards
Structure length: GB/T1221, API609, ISO5752
Test and inspection: JB/T9092, GB/T26480, API598, ISO5208, etc


Performance parameter

Nominal diameter: DN50 ~ dn3600mm2 "~ 144"
Nominal pressure: pn2.5 ~ pn260, claus150 ~ class1500
Applicable temperature: - 196 ℃ ~ 600 ℃
Main materials: carbon steel, Luo Mo steel, austenitic stainless steel, duplex stainless steel, titanium alloy, Hastelloy, Monel alloy, etc


Product size


DN(mm) PN 6 Approximate weight
L L1 L2 L3 D D1 D2 C H N-d Kg(L) Kg(L1) Kg(L2) Kg(L3)
80 114 49 180 49 190 150 124 18 310 4-18 20 11 17 13
100 127 56 190 56 210 170 144 18 325 4-18 23 13 19 16
125 140 64 200 64 240 200 174 18 360 8-18 28 16 25 20
150 140 70 210 70 265 225 199 20 395 8-18 33 21 28 24
200 152 71 230 71 320 280 254 22 480 8-18 48 28 49 36
250 165 76 250 76 375 335 309 24 550 12-18 54 45 95 52
300 178 83 270 83 440 395 363 24 610 12-22 80 61 130 79
350 190 92 290 92 490 445 413 24 710 12-22 103 82 160 107
400 216 102 310 102 540 495 463 24 755 16-22 145 122 216 150
450 222 114 330 114 595 550 518 24 835 16-22 193 150 248 183
500 229 127 350 127 645 600 568 26 900 20-22 258 205 380 254
600 267 154 390 154 755 705 667 30 1060 20-26 302 300 495 398
700 292 165 430 165 860 810 772 26 1170 24-26 385 465 595 576
800 318 190 470 190 975 920 878 26 1320 24-30 525 570 740 690
900 330 203 510 203 1075 1020 978 26 1440 24-30 723 760 1230 870
1000 410 216 550 216 1175 1120 1078 26 1640 28-30 990 975 1450 1180
1200 470 254 630 254 1405 1340 1295 28 1720 32-33 1455 1250 2180 1490
1400 530 390 710 390 1630 1560 1510 32 2055 36-36 1860 1780 2980 2050
1600 600 440 790 440 1830 1760 1710 34 2185 40-36 2180 1990

1800 670 490 870 490 2045 1970 1918 36 2390 44-39 3950


2000 760 540 950 540 2265 2180 2125 38 2620 48-42



2200 800 590 1000 590 2475 2390 2335 42 2980 52-42



2400 850 650 1100 650 2685 2600 2545 44 3150 56-42



2600 900 700 1200 700 2905 2810 2750 46 3320 60-48



2800 950 760 1300 760 3115 3020 2960 48 3550 64-48



3000 1000 810 1400 810 3315 3220 3160 50 3770 68-48





DN(mm) PN 10 Approximate weight
L L1 L2 L3 D D1 D2 C H N-d Kg(L) Kg(L1) Kg(L2) Kg(L3)
80 114 49 180 49 200 160 132 20 310 8-18 22 11 17 13
100 127 56 190 56 220 180 156 22 325 8-18 24 13 19 19
125 140 64 200 64 250 210 184 22 360 8-18 30 16 25 23
150 140 70 210 70 285 240 211 24 395 8-22 38 21 28 29
200 152 71 230 71 340 295 266 24 480 8-22 56 28 49 51
250 165 76 250 76 395 350 319 26 550 12-22 70 45 95 69
300 178 83 270 83 445 400 370 26 610 12-22 92 61 130 109
350 190 92 290 92 505 460 429 26 710 16-22 115 82 178 143
400 216 102 310 102 565 515 480 26 755 16-26 169 122 238 195
450 222 114 330 114 615 565 530 28 835 20-26 220 150 275 265
500 229 127 350 127 670 620 582 28 900 20-26 265 205 423 335
600 267 154 390 154 780 725 682 34 1060 20-30 399 300 550 460
700 292 165 430 165 895 840 794 34 1170 24-30 489 465 665 740
800 318 190 470 190 1015 950 901 36 1320 24-33 652 570 815 920
900 330 203 510 203 1115 1050 1001 38 1440 28-33 880 760 1360 1180
1000 410 216 550 216 1230 1160 1112 38 1640 28-36 1215 975 1610 1320
1200 470 254 630 254 1455 1380 1328 44 1720 32-39 1790 1250 2415 1680
1400 530 390 710 390 1675 1590 1530 48 2010 36-42 2480 1780 3320 2160
1600 600 440 790 440 1915 1820 1750 52 2255 40-48 3220 2640

1800 670 490 870 490 2115 2020 1950 56 2480 44-48 4350


2000 760 540 950 540 2325 2230 2150 60 2660 48-48 5600




DN(mm) PN 16 Approximate weight
L L1 L2 L3 D D1 D2 C H N-d Kg(L) Kg(L1) Kg(L2) Kg(L3)
80 114 49 180 49 200 160 132 20 310 8-18 22 11 17 13
100 127 56 190 56 220 180 156 22 325 8-18 24 13 19 19
125 140 64 200 64 250 210 184 22 360 8-18 30 16 25 23
150 140 70 210 70 285 240 211 24 395 8-22 38 21 28 29
200 152 71 230 71 340 295 266 24 480 12-22 56 40 49 51
250 165 76 250 76 405 355 319 26 550 12-26 80 50 95 69
300 178 83 270 83 460 410 370 28 610 12-26 108 75 130 109
350 190 92 290 92 520 470 429 30 710 16-26 140 102 178 143
400 216 102 310 102 580 525 480 32 755 16-30 206 145 238 195
450 222 114 330 114 640 585 548 40 835 20-30 262 190 275 265
500 229 127 350 127 715 650 609 44 900 20-33 318 255 423 335
600 267 154 390 154 840 770 720 54 1060 20-36 470 360 550 460
700 292 165 430 165 910 840 794 40 1170 24-36 553 470 665 740
800 318 190 470 190 1025 950 901 42 1320 24-39 688 655 815 920
900 330 203 510 203 1125 1050 1001 44 1440 28-39 999 897 1360 1180
1000 410 216 550 216 1255 1170 1112 46 1640 28-42 1435 1132 1610 1320
1200 470 254 630 254 1485 1390 1328 52 1850 32-48 2200 1400 2415 1680
1400 530 390 710 390 1685 1590 1530 58 2040 36-48 3200 1900 3320 2160
1600 600 440 790 440 1930 1820 1750 64 2280 40-55 6000 2900

1800 670 490 870 490 2130 2020 1950 68 2495 44-55 6900 4000

2000 760 540 950 540 2345 2230 2150 70 2685 48-60 9100 5300



DN(mm) PN 25 Approximate weight
L L1 L2 L3 D D1 D2 C H N-d Kg(L) Kg(L1) Kg(L2) Kg(L3)
80 114 49 180 49 200 160 132 24 310 8-18 23 11 17 13
100 127 56 190 56 235 190 156 24 325 8-22 25 13 19 19
125 140 64 200 64 270 220 184 26 360 8-26 34 16 25 23
150 140 70 210 70 300 250 211 28 395 8-26 42 21 28 29
200 152 71 230 71 360 310 274 30 480 12-26 58 40 49 51
250 165 76 250 76 425 370 330 32 550 12-30 90 50 95 69
300 178 83 270 83 485 430 389 34 610 16-30 120 75 130 109
350 190 92 290 92 555 490 448 38 710 16-33 170 102 178 143
400 216 102 310 102 620 550 503 40 755 16-36 235 145 238 195
450 222 114 330 114 670 600 548 46 835 20-36 285 190 275 265
500 229 127 350 127 730 660 609 48 900 20-36 385 255 423 335
600 267 154 390 154 845 770 720 58 1060 20-39 580 360 550 460
700 292 165 430 165 960 875 820 50 1170 24-42 705 470 665 740
800 318 190 470 190 1085 990 928 54 1320 24-48 970 655 815 920
900 330 203 510 203 1185 1090 1028 58 1440 28-48 1225 897 1360 1180
1000 410 216 550 216 1320 1210 1140 62 1640 28-55 1680 1132 1610 1320
1200 470 254 630 254 1530 1420 1350 70 1850 32-55 2450 1580 2415 1680
1400 530 390 710 390 1755 1640 1560 76 2040 36-60 3600 2100 3320 2160



DN(mm) PN 40
L L1 L2 L3 D D1 D2 C H N-d
80 114 49 180 49 200 160 132 24 310 8-18
100 127 56 190 56 235 190 156 24 325 8-22
125 140 64 200 64 270 220 184 26 360 8-26
150 140 70 210 70 300 250 211 28 395 8-26
200 230 71 230 71 375 320 284 34 515 12-30
250 250 76 250 76 450 385 345 38 675 12-33
300 270 83 270 83 515 450 409 42 805 16-33
350 290 92 290 92 580 510 465 46 850 16-36
400 310 102 310 102 660 585 535 50 895 16-39
450 330 152 330 152 685 610 560 57 960 20-39
500 350 159 350 159 755 670 615 57 1030 20-42
600 390 181 390 181 890 795 735 72 1180 20-48



DN(mm) PN 63
L L1 L2 L3 D D1 D2 C H N-d
80 180 64 180 64 215 170 132 28 310 8-22
100 190 64 190 64 250 200 156 30 325 8-26
125 200 70 200 70 295 240 184 34 360 8-30
150 210 76 210 76 345 280 211 36 430 8-33
200 230 89 230 89 415 345 284 42 535 12-36
250 250 114 250 114 470 400 345 46 695 12-36
300 270 114 270 114 530 460 409 52 805 16-36
350 290 127 290 127 600 525 465 56 880 16-39
400 310 140 310 140 670 585 535 60 930 16-42
450 330 160 330 160 715 630 560 64 990 20-42
500 350 170 350 170 800 705 615 68 1050 20-48
600 390 200 390 200 930 820 735 76 1230 20-56



DN(mm) PN 100
L L1 L2 L3 D D1 D2 C H N-d
150 210 76 210 76 355 290 211 44 425 12-33
200 230 89 230 89 430 360 284 52 640 12-36
250 250 114 250 114 505 430 345 60 745 12-39
300 270 114 270 114 585 500 409 68 820 16-42
350 290 127 290 127 655 560 465 74 935 16-48
400 310 140 310 140 715 620 535 82 975 16-48
450 330 160 330 160 770 675 560 89 1110 20-48
500 350 170 350 170 870 760 615 94 1215 20-56
600 390 200 390 200 990 875 735 102 1300 20-62
