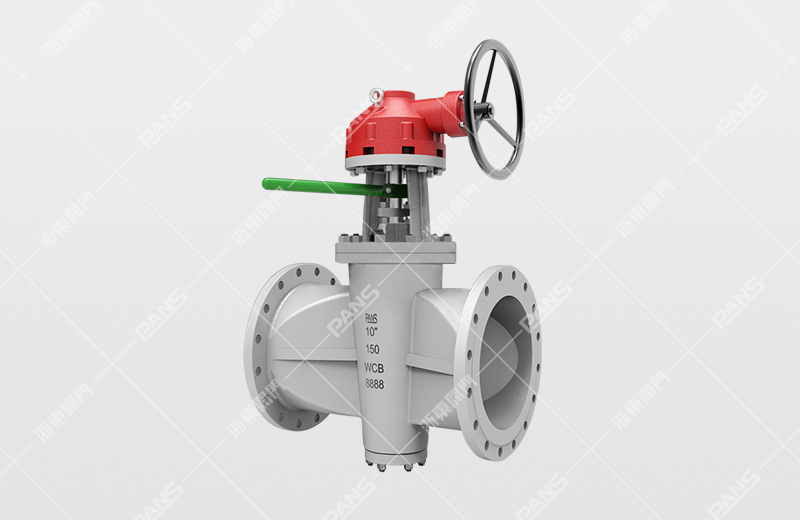

Lifting hard sealed plug valve
Release time:2023-9-8
Structural features
1. Reasonable product structure, reliable sealing, excellent performance and beautiful appearance.
2. The opening and closing process of the valve is under the condition
that the sealing surface is detached, which will not cause the abrasion
of the sealing surface.
3, two-way flow, more convenient installation and use.
4. The material and flange size of the parts can be reasonably selected
according to the actual working conditions or user requirements to meet
various engineering needs.
Technical specifications
Structural formation | BB-BG-OS&Y |
Design standard | API599、API6D |
Face to face | ASMEB16.10 |
Flange ends | ASMEB16.5 |
Test & inspection | API598.API 6D |
Product performance specification
Nominal pressure | Shell test pressure | Sealing test pressure | Applicable temperature(℃) | Applicable media |
150 | 3 | 2.2 | ≤550℃ | Water, steam, oil, etc |
300 | 7.5 | 5.5 | ||
600 | 15 | 11 | ||
900 | 22.5 | 16.5 | ||
1500 | 37.5 | 27.5 |
Product size
Model | ZDALX43-150LB | |||||||||||||||
Pressure | 150LB | |||||||||||||||
Caliber | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
Size | in | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
L | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | |
H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
(Kg) Weight | 9 | 10 | 11 | 17 | 19 | 23 | 25 | 32 | 55 | 82 | 98 | 130 | 178 | 250 | 380 |
Model | ZDALX43-300LB | |||||||||||||||
Pressure | 300LB | |||||||||||||||
Caliber | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
Size | in | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
L | 140 | 152 | 165 | 178 | 190 | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | |
H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
(Kg) Weight | 10 | 12 | 14 | 19 | 21 | 28 | 34 | 39 | 75 | 95 | 135 | 200 | 255 | 415 | 650 |
Model | ZDALX43-600LB | |||||||||||||||
Pressure | 600LB | |||||||||||||||
Caliber | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
Size | in | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | |
H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
(Kg) Weight | 13 | 14 | 19 | 23 | 25 | 32 | 40 | 55 | 105 | 139 | 300 | 440 | 730 | 1150 | 1570 |
Model | ZDAXL43-900LB | |||||||||||||||
Pressure | 900LB | |||||||||||||||
Caliber | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
Size | in | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
L | 229 | 229 | 254 | 279 | 305 | 368 | 419 | 381 | 457 | 559 | 610 | 737 | 838 | 965 | 1029 | |
H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
(Kg) Weight | 16 | 17 | 26 | 30 | 33 | 39 | 50 | 70 | 137 | 181 | 397 | 590 | 860 | 1470 | 1880 |
