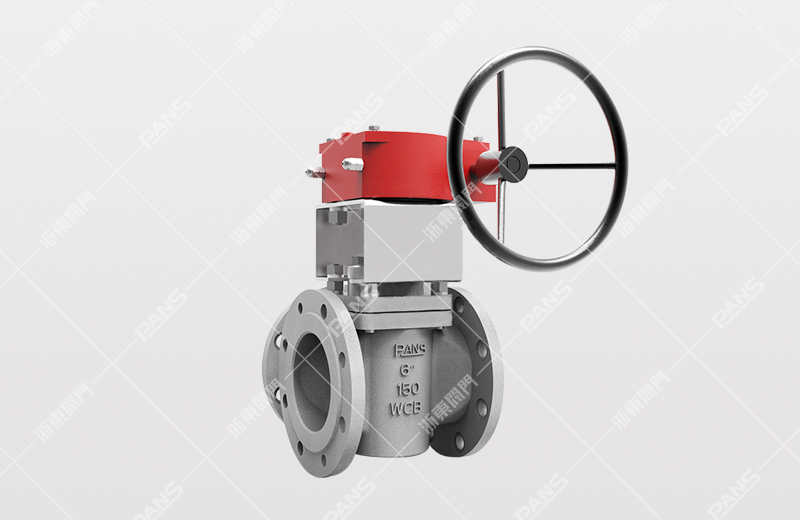

L-type three-way ferrule sealing plug valve
Release time:2023-10-6



Scope of application

At present, plug valves are widely used in oil field mining, conveying and refining equipment, as well as in petrochemical, chemical, gas, natural gas, liquefied petroleum gas, heating and ventilation industries and general industries.



Main Outline Dimensions and Connection Dimensions


DN L d1 d2 d3 b f N-ФZ
150Lb
1/2 108 35 60.5 89 11 2 4-15
3/4 117 43 70 98 11 2 4-15
1 127 51 79.5 108 12 2 4-15
1¼ 140 64 89 117 13 2 4-15
1½ 165 73 98.5 127 15 2 4-15
2 178 92 120.5 152 16 2 4-19
2½ 190 105 139.5 178 18 2 4-19
3 203 127 152.5 190 19 2 4-19
4 229 157 190.5 229 24 2 8-19
5 254 186 216 254 24 2 8-22
6 267 216 241.5 279 26 2 8-22
8 292 270 298.5 343 29 2 8-22
10 330 324 362 406 31 2 12-25
12 356 381 432 483 32 2 12-25
300Lb
1/2 140 35 66.5 95 15 2 4-15
3/4 152 43 82.5 117 16 2 4-19
1 165 51 89 124 18 2 4-19
1¼ 178 64 98.5 133 19 2 4-19
1½ 190 73 114.5 156 21 2 4-22
2 216 92 127 165 23 2 8-19
2½ 241 105 149 190 26 2 8-22
3 283 127 168.5 210 29 2 8-22
4 305 157 200 254 32 2 8-22
5 381 186 235 279 35 2 8-22
6 403 216 270 318 37 2 12-22
8 419 270 330 381 42 2 12-25
10 457 324 387.5 445 48 2 16-25
12 502 381 451 521 51 2 16-25
600Lb
1/2 165 35 66.5 95 22 7 4-15
3/4 190 43 82.5 118 23 7 4-19
1 216 51 89 124 25 7 4-19
1¼ 229 64 98.5 133 28 7 4-19
1½ 241 73 114.5 156 30 7 4-22
2 292 92 127 165 33 7 8-19
2½ 330 105 149 190 36 7 8-22
3 356 127 168 210 39 7 8-22
4 432 157 216 273 45 7 8-25
5 508 186 266.5 330 52 7 8-29
6 559 216 292 356 55 7 12-29
8 660 270 349 419 63 7 12-32
10 787 324 432 508 71 7 16-35
12 838 381 489 559 74 7 20-35
